1. Product Overview

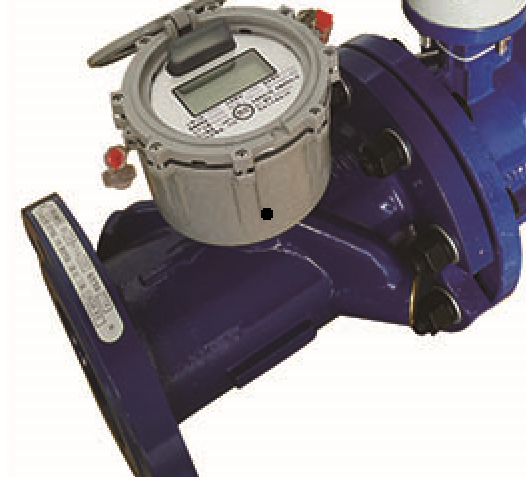

Intelligent valve controlled water meter (butterfly valve large-diameter) is a type of water meter that combines intelligent metering and remote control functions. It is commonly used in urban water supply systems, industrial water use, agricultural irrigation, and other fields. This water meter can not only accurately measure the water flow through the pipeline, but also control the opening and closing of the water flow through the built-in valve. The large diameter design of butterfly valves makes them suitable for high flow water supply scenarios.
2. Electronic parameters
working voltage | 3.60V | Range: 3.0V~3.6V |
Average static current | 15uA±5uA | |
battery | ER26500+HPC1520 | Capacity: 8500mAh |
Trigger Mode | Virtual button/IC card | |
NB automatic upload cycle | Default 24 hours | Support setting three modes |
NB peak shifting mechanism | According to the average of the last 4 digits of the table number | Distributed over 24 hours |
Reissue mechanism | After the automatic upload fails, a replacement will be sent half an hour later | Reissue once |
Sample Type | Magnetic resistance 10L measurement | modifiable |
Billing method | Meter end/platform billing | |
Ladder type | 3 steps | |
actuator | 5-line valve | |
Valve maintenance time | 15 Days | |
